The Ohayo is designed to be a sleek yet sturdy bed. Which is why, correctly assembling it becomes important. Make sure to follow every step mentioned in this manual and don’t forget to recheck those nuts and screws.

Let's start building your bed…

Parts

Make sure you have all the parts shown below

Parts illustration

Parts Checklist

1. HEADBOARD-1 BOX 1
2. HEADBOARD-1 BOX 1
3. HEADBOARD-1 BOX 1
4. HEADBOARD-1 BOX 1
5. HEADBOARD-1 BOX 1
6. HEADBOARD-1 BOX 1
7. HEADBOARD-1 BOX 1

Hardware Checklist

Hardware icon

A. Spanner - Qt. 1

Hardware icon

A. Spanner - Qt. 1

Assembly Instructions

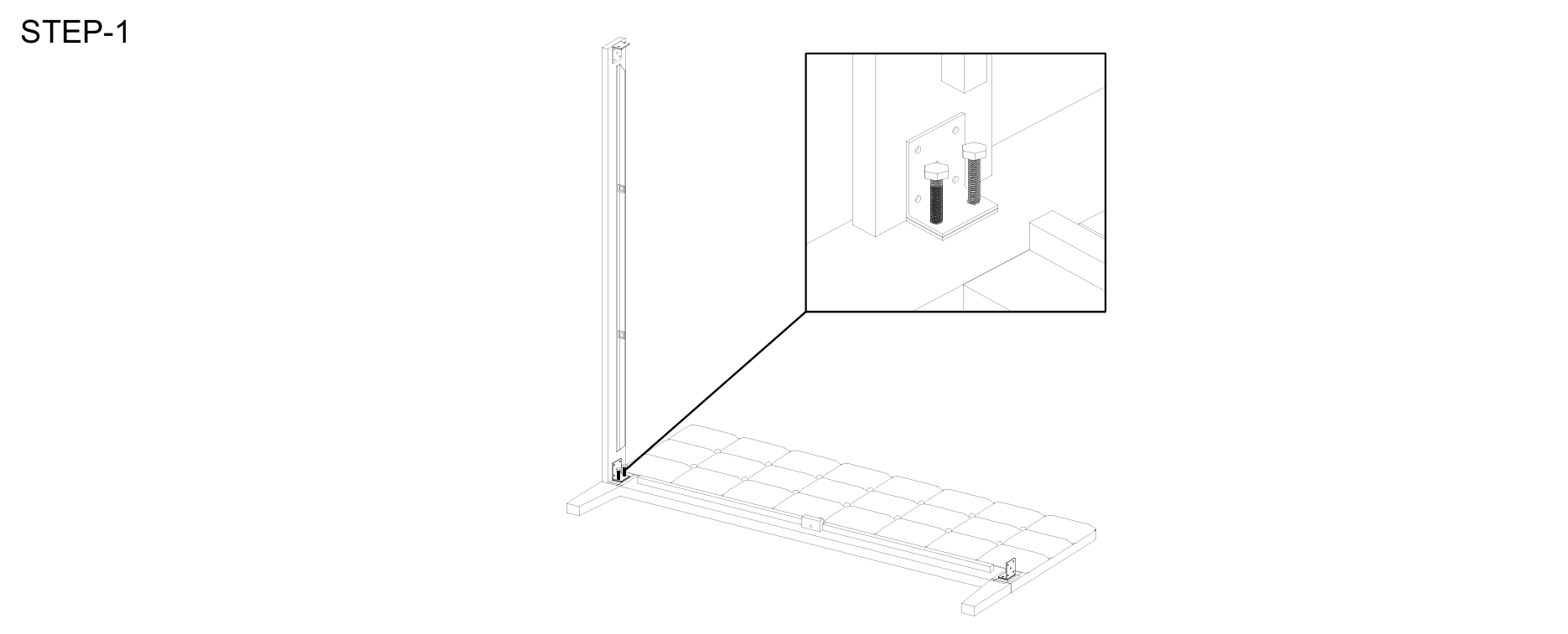

Step 1

Step image

Join the LHS Panel (marked 3) with the Headboard (marked 1) on the left side using 2 nuts and a spanner

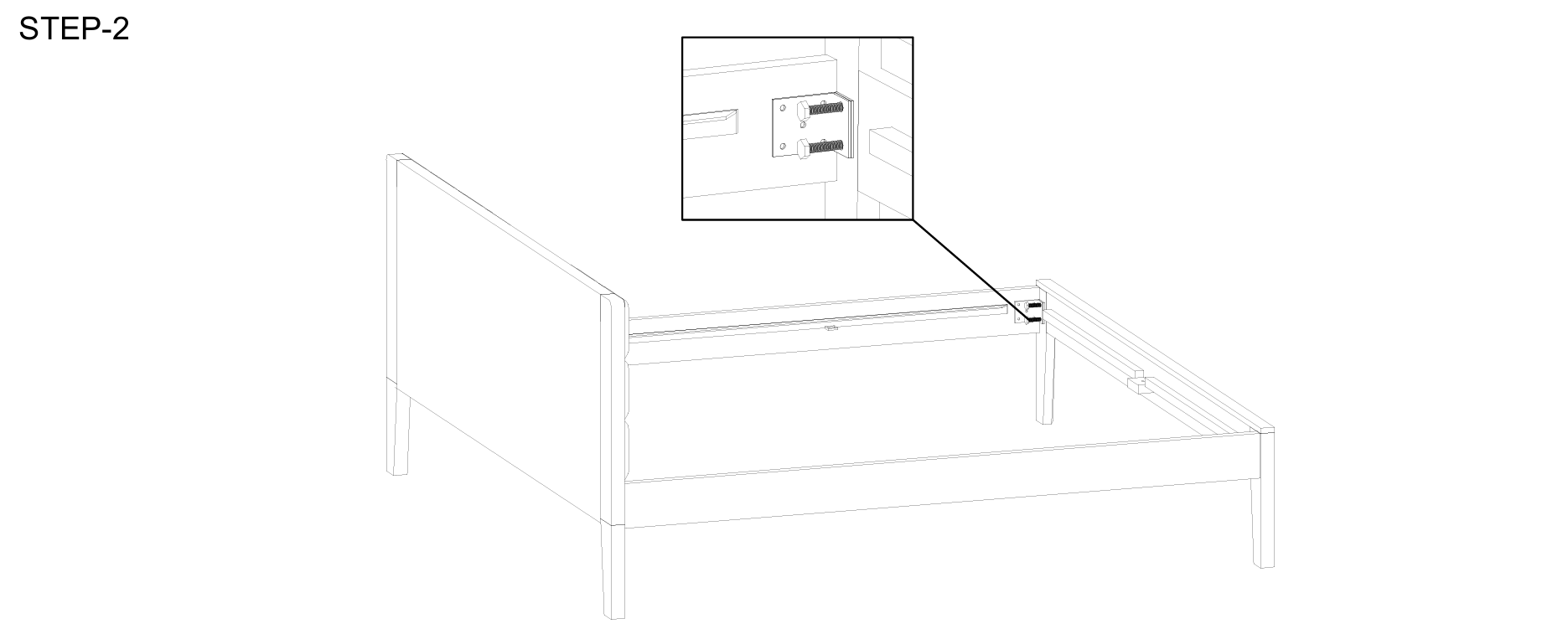

Step 2

Step image

Then join the RHS Panel (marked 4) with the Headboard (marked 1) on the right side using 2 nuts and a spanner

Step 3

Step image

Join the Footboard (marked 2) with LHS panel (marked 3) and RHS panel (marked 4) with the help of a spanner and 2 nuts on the right side. The base or skeletal structure of your bed is ready. Headboard, Footboard, LHS Panel, and RHS Panel, keep that aside.

Step 4

Step image

As shown in the respective image, join the 2 Mid legs (marked 7) with the help of screws at the bottom side of the Vertical Panel (marked 5) for the support

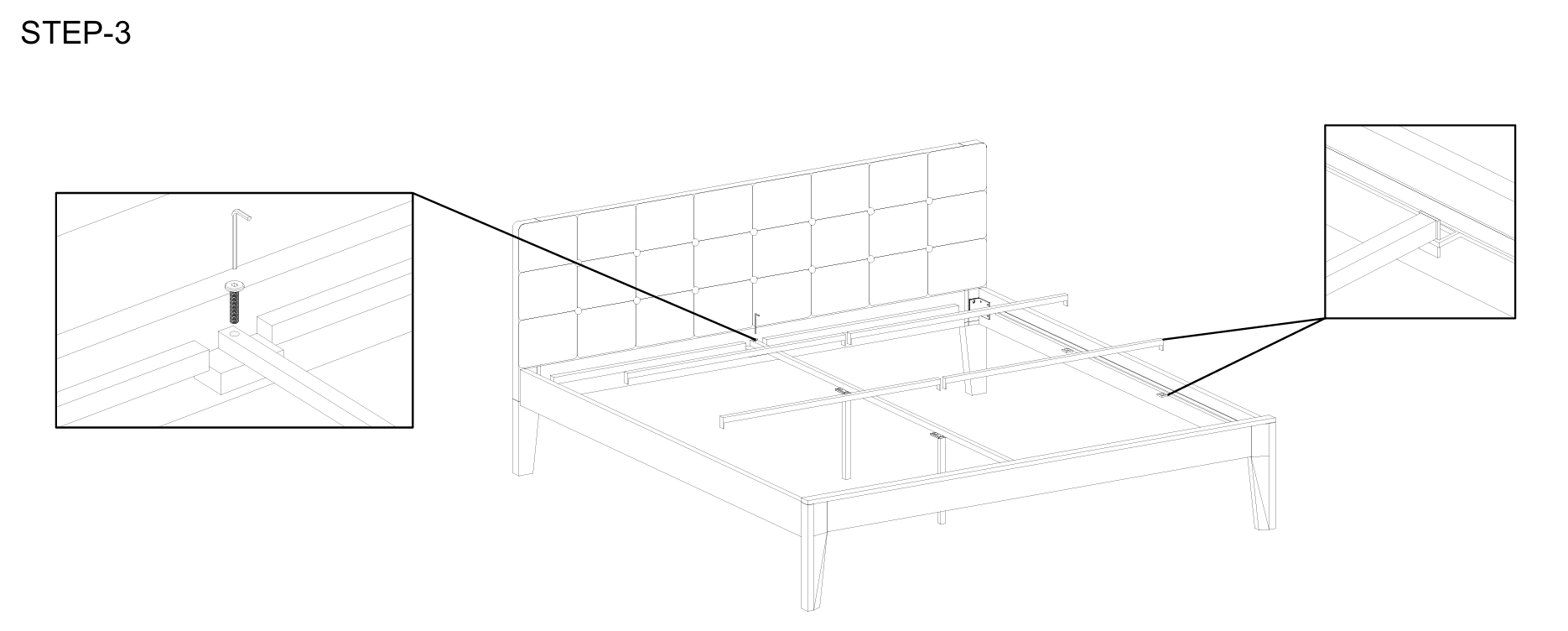

Step 5

Step image

Put the Horizontal Panel (marked 6) on top of the base we made in Step 4 - with 2 mid legs and the Vertical Panel. You will notice that this base is in a plus (+) sign. Join this base in the middle of the base you created in Step 3.

Step 6

Step image

You have 4 square boards in Box 3 - these are your mattress panels. Place 2 Mattress Panels (marked 8) and 2 Mattress Panels (marked 9) on the top of the base of the bed.

Step 7

Step image

Your bed is ready for a mattress now. Go ahead and get some rest now, you've earned it.
